i.MX93 VERSA SOM Evaluation Kit
Energy Efficient, Secure
Dual-core Arm
Cortex-A55
MIPI DSI, LVDS
Gigabit Ethernet
AI & ML
Capabilities
Product Overview

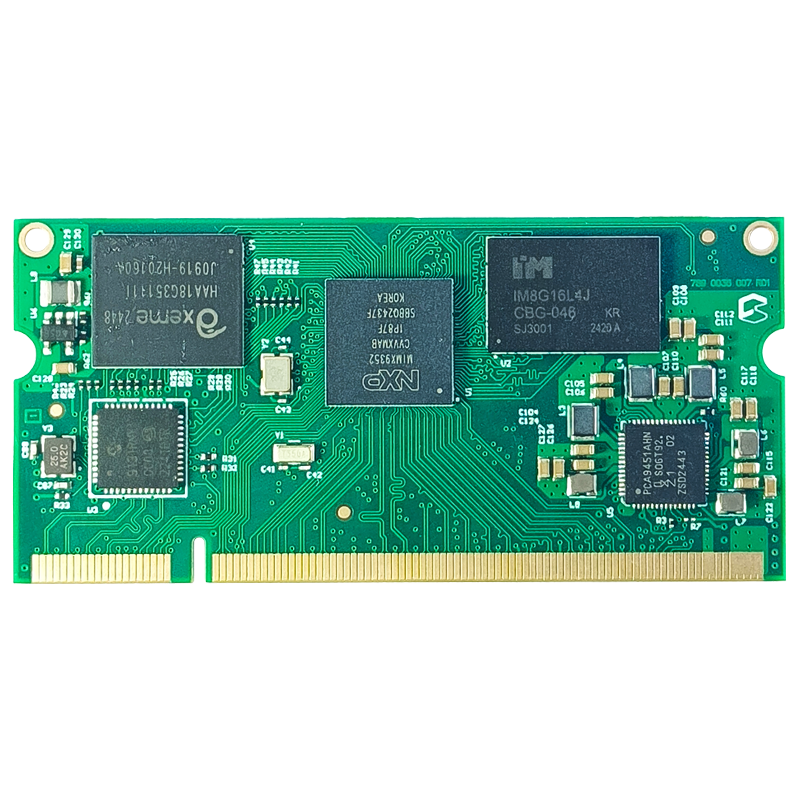

The i.MX93 VERSA SoM Evaluation Board is a feature-rich platform designed to accelerate the development and evaluation of applications built on the i.MX93 VERSA SoM. It integrates the NXP i.MX93 processor with a 1.7GHz Dual Cortex™-A55 and a 250MHz Cortex-M33 real-time co-processor, along with an NPU for efficient AI processing at the edge. This versatile board provides extensive connectivity and interface options, including CAN, RS485, Gigabit Ethernet, USB, MIPI and LVDS display, MIPI Camera, and IOs
Features
Optimized Performance
Unparalleled performance for responsive embedded computing, real-time control, and rich user interfaces while maintaining power efficiency.
Optimized for Al and Vision
Entry level NPU and unlock new possibilities for artificial intelligence and computer vision applications.
Industrial-Grade Reliability
Engineered for exceptional reliability and long-term operation in demanding industrial environments.
Power Efficient
Combines advanced processing with energy efficiency to meet the demands of modern industrial and IoT deployments.
Specifications
Processor:
Processor: i.MX93
MPU Core: Arm Cortex-A55
MPU Frequency: 1.7GHz
Sub Core: Arm Cortex-M33
Sub Core Frequency: 1.7GHz
NPU: Ethos microNPU, 0.5 TOPS
Memory:
RAM: 2GB LPDDR4x
eMMC: 8Gb
Peripheral List:
USB Host
USB OTG
RS485
CAN-FD
RTC + Backup
SD Card
Expansion Connector – GPIOs/PWM/UART/SPI/I2C/SAI/Parallel RGB Display
Connectivity:
Gigabit Ethernet
Multimedia:
MIPI CSI
MIPI DSI
LVDS
Miscellaneous:
JTAG
Debug UARTs – A55 and M33
Design Resources
- SOM Hardware user manual
- Datasheet
Software Releases
Technology Use Cases
In the fast-paced world of embedded systems, time-to-market, scalability, and reliability are critical. This is where System on Modules (SoMs) shine. A …
Resources
A versatile System on Module featuring the NXP i.MX93 processor. It boasts a powerful 1.7GHz Dual Cortex™-A55 processor with a 250MHz Cortex-M33 Real-time co-processor, and incorporates a Neural Processing Unit (NPU) for enhanced AI capabilities, providing an energy flex architecture and built-in security features. Designed for industrial applications, it includes dual CAN bus, dual GbE, and industrial temperature grade support. This compact module offers a wide array of peripherals and connectivity options, making it ideal for diverse embedded applications requiring robust performance, AI processing, and reliability.
