AM335x VERSA PRU SOM
Mainstream, Optimum Design
Single-core Arm
Cortex-A8
Cryptography
Device identity
Dual 10/100Mbps
Ethernet
Industrial Protocols
HSR, PRP, PTP
Product Overview
The AM335x VERSA PRU SOM is an industrial application focused System on Module featuring the TI AM335x processor. It boasts a powerful 1GHz Single Core Arm Cortex™-A8 processor with a PRU Real-time co-processor for supporting industrial protocols like HSR, PRP, and PTP. It includes dual CAN bus, Dual PRU 10/100Mbps Ethernets, and industrial temperature grade support. This compact module offers a wide array of peripherals and connectivity options, making it ideal for diverse embedded applications requiring robust performance, and reliability.
Features
Optimized Performance
Unparalleled performance for responsive embedded computing, real-time control, and rich user interfaces while maintaining power efficiency.
Reliable, 200 PIN SODIMM Connector
Ensures robust mechanical integrity, streamlined manufacturing, and enhanced reliability in rugged industrial applications.
Industrial-Grade Reliability
Engineered for exceptional reliability and long-term operation in demanding industrial environments.
Rich I/O and Connectivity
Comprehensive I/O and industrial connectivity options enable seamless integration with a wide range of peripherals and field interfaces.
Specifications
Processor:
Processor: AM335x
Architecture: Arm Cortex-A8
Frequency: 1GHz
Memory:
RAM: 256/512/1024MB DDR3L
eMMC: 4/8/16GB
NOR FLASH: 8MB
Peripheral List:
6x UART
2x SPI
2x CAN
3x I2C
2x USB 2.0 OTG
2x MMC/SD
8x ADC Channels
3x eHRPWM
3x eQEP
Connectivity:
2x 10/100Mbps Ethernet capable of running HSR/PRP/PTP protocols
Multimedia:
2x McASP
Miscellaneous:
RTC
JTAG
Cryptography
Device Identity
Design Resources
- SOM Hardware user manual
- Datasheet
Software Releases
Technology Use Cases
The industrial automation landscape is undergoing a massive transformation. As factories evolve into smart, interconnected ecosystems, the need for reliable, scalable, and …
In the fast-paced world of embedded systems, time-to-market, scalability, and reliability are critical. This is where System on Modules (SoMs) shine. A …
Resources

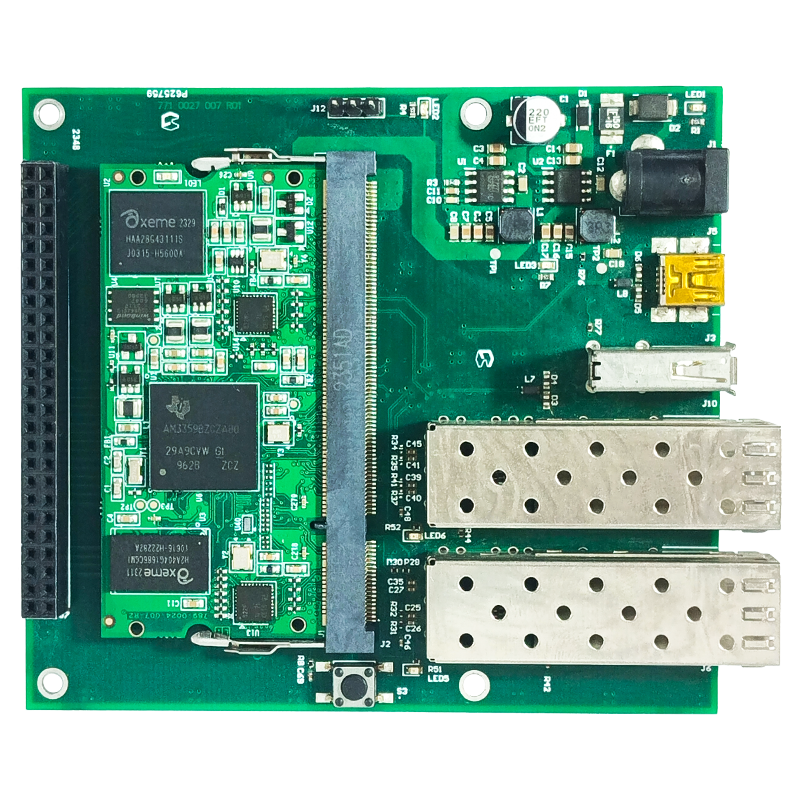

A feature-rich platform designed to accelerate the development and evaluation of applications built on the AM335x VERSA PRU SoM. It integrates the TI AM335x processor with a 1GHz Single Cortex™-A8 and a real-time co-processor. This versatile board provides extensive connectivity and interface options, including dual fiber Ethernet ports, USB Host, USB OTG RGB, and IOs
