AM335x TINY SOM
Value Line, Affordable
Single-core Arm
Cortex-A8
Cryptography
Device identity
Single Gigabit
Ethernet
SGX530 - Graphics
Accelerator
Product Overview
The AM335x TINY SOM is an affordable System on Module featuring the TI AM335x processor. It boasts a powerful 1GHz Single Core Arm Cortex™-A8 processor with a PRU Real-time co-processor, and incorporates a 3D Graphics Processing Unit (GPU) for enhanced User Interface capabilities, providing an energy flex architecture and built-in security features. Designed for industrial applications, it includes dual CAN bus, Single Gigabit Ethernet, and industrial temperature grade support. This compact module offers a wide array of peripherals and connectivity options, making it ideal for diverse embedded applications requiring robust performance, Graphical User Interface, and reliability.
Features
Optimized Performance
Unparalleled performance for responsive embedded computing, real-time control, and rich user interfaces while maintaining power efficiency.
Pluggable, Hirose Connectors
Ensures robust mechanical integrity, streamlined manufacturing, and enhanced reliability in rugged industrial applications.
Industrial-Grade Reliability
Engineered for exceptional reliability and long-term operation in demanding industrial environments.
Rich I/O and Connectivity
Comprehensive I/O and industrial connectivity options enable seamless integration with a wide range of peripherals and field interfaces.
Specifications
Processor:
Processor: AM335x
Architecture: Arm Cortex-A8
Frequency: 1GHz
Memory:
RAM: 256/512/1024MB DDR3L
eMMC: 4/8/16GB
NOR FLASH: 8MB
Peripheral List:
6x UART
2x SPI
2x CAN
3x I2C
1x USB 2.0 OTG
2x MMC/SD
8x ADC Channels
3x eHRPWM
3x eQEP
Connectivity:
Gigabit Ethernet
Multimedia:
24-bit RGB Parallel Display
Touch Screen Controller
2x McASP
Miscellaneous:
RTC
JTAG
Cryptography
Device Identity
Design Resources
- SOM Hardware user manual
- Datasheet
Software Releases
Technology Use Cases
In the fast-paced world of embedded systems, time-to-market, scalability, and reliability are critical. This is where System on Modules (SoMs) shine. A …
Resources

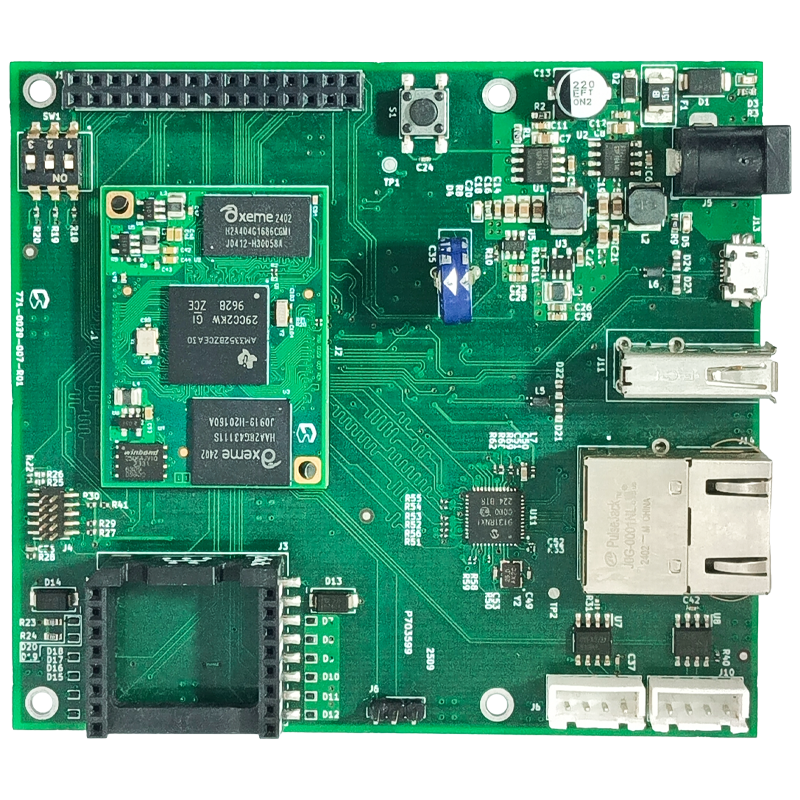

A feature-rich platform designed to accelerate the development and evaluation of applications built on the AM335x TINY SoM. It integrates the TI AM335x processor with a 1GHz Single Cortex™-A8 and a real-time co-processor.
